| Place of Origin: | Anhui |
| Brand Name: | P&S |
| Certification: | ISO9001:2008 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $150 |
| Packaging Details: | Plywood Cases |
| Delivery Time: | 2~4 weeks |
| Payment Terms: | T/T In advance |
| Supply Ability: | 1000 PCS PER MONTH |
Material : 42CrMo
Hardness: 48-52 HRC
Clamping system : Promecam Amada 13*30
Profile :

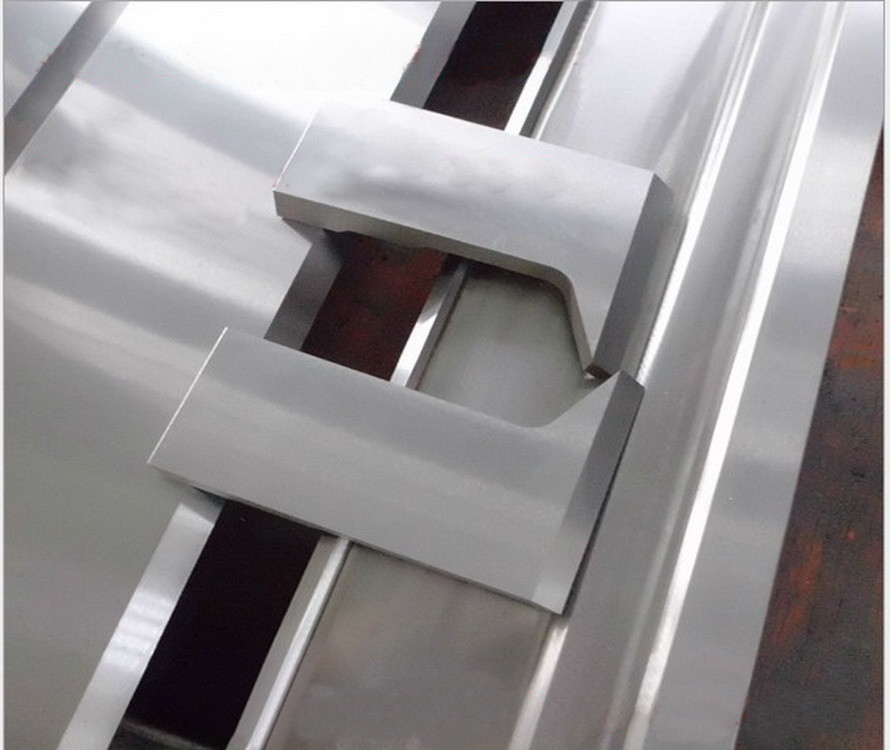

We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :
quenching + tempering + 860 °C Oil quenching + 390°C Tempering .
At last ,the tolerance of tooling we can control is +/-0.02mm
Range:
we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm
The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)
Case:
Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia .
