| Place of Origin: | anhui |
| Brand Name: | PSLASER |
| Certification: | iso9001:2008 |
| Model Number: | 60x110x835 27x150x835 |
| Minimum Order Quantity: | 1 set @3340mm |
|---|---|
| Price: | 2000$ |
| Packaging Details: | 1 off plywood crates |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 15 set each month |
| Material: | 42CrMo4 From Germany | Hardness: | 48-52HRC |
|---|---|---|---|
| Tolerance: | 0.02mm | Length: | 835mm |

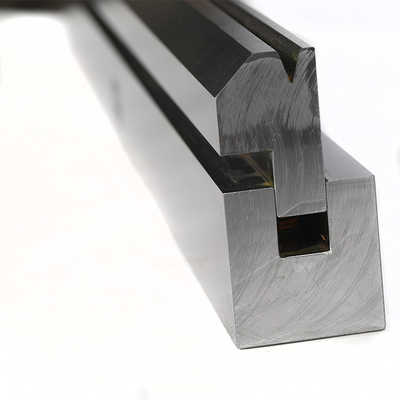

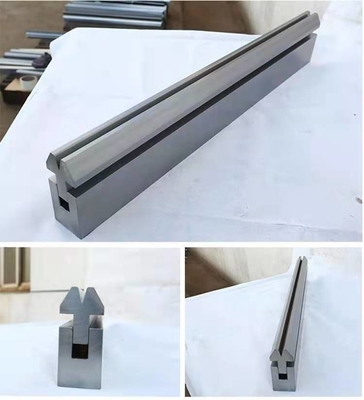

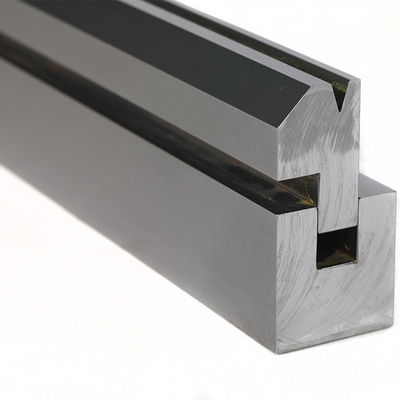

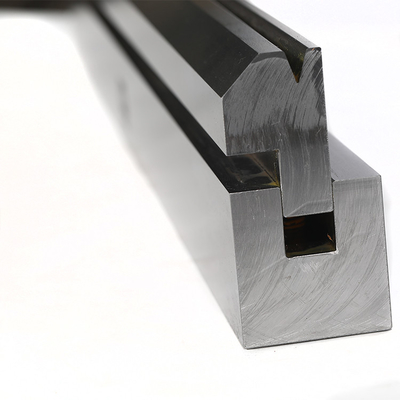

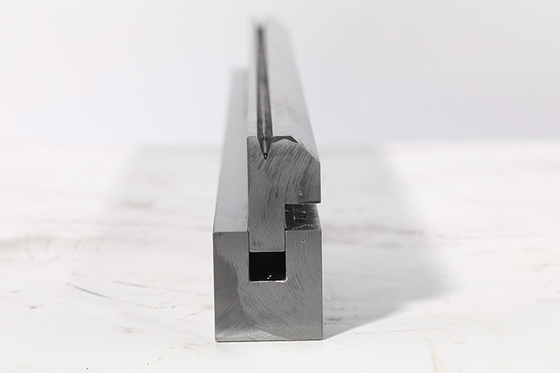

We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :
quenching + tempering + 860 °C Oil quenching + 390°C Tempering .
At last ,the tolerance of tooling we can control is +/-0.02mm
Range:

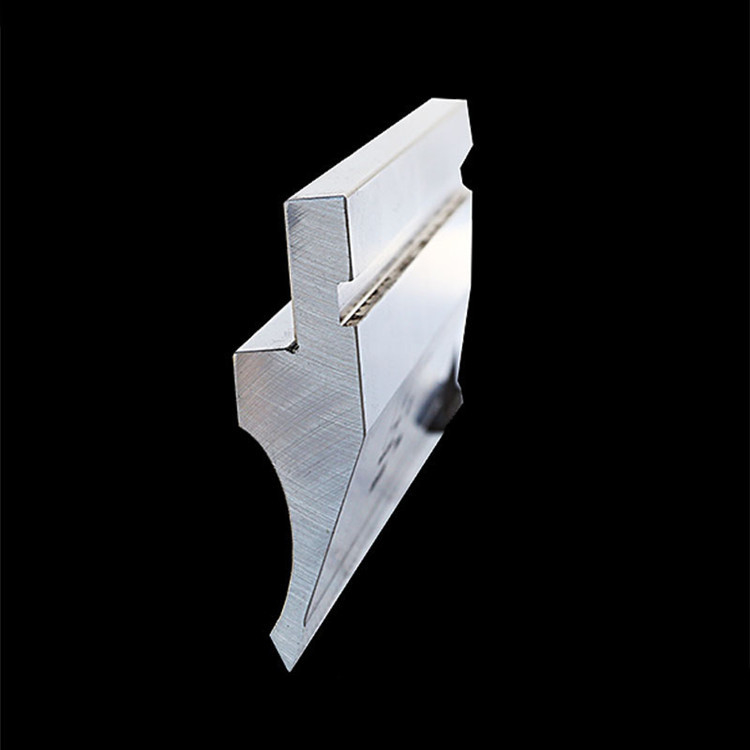

we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm
The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)
Case:Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia
