Adjustable Die Block opening 100-200 MM 8000mm for Accurlpress Australia

Product Details:

Place of Origin:	anhui
Brand Name:	PSLASER
Certification:	iso9001:2008
Model Number:	200X410X8000MM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set @3500mm
Price:	12000$
Packaging Details:	1 off plywood crates
Delivery Time:	4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Material:	42CrMo4 From Germany	Hardness:	48-52HRC
Tolerance:	0.02mm	Length:	3500mm/4500mm/5000mm/6000mm/8000mm

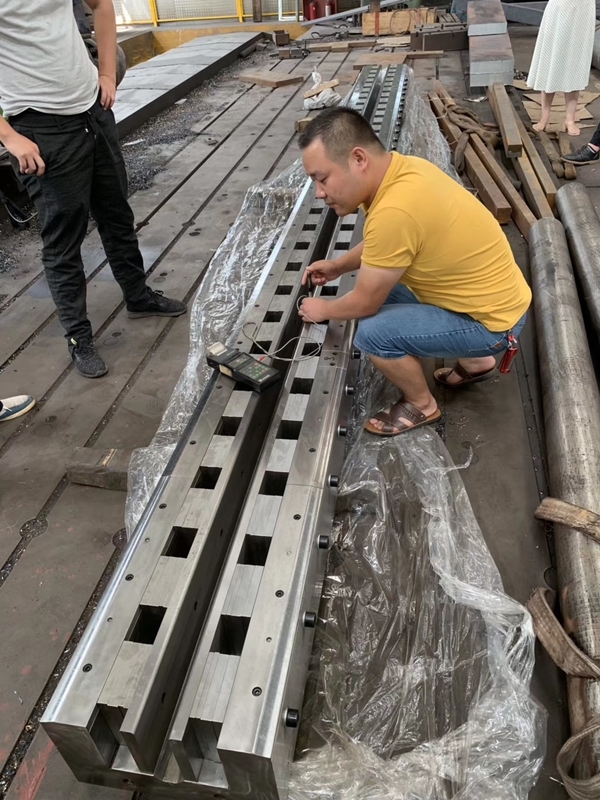

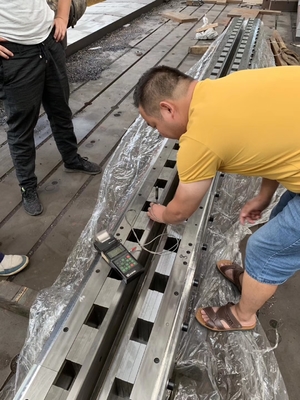

Adjustable Die Block opening 100-200 MM 8000mm for Accurlpress Australia

Adjustable Die for press brake

Profile :

We always use raw material 42CrMo4 to produce the popular press brake tooling and all the tooling are hardened and ground to reach the hardness of 48~52 HRC (Rockwell hardness), the procedure for holistic heat treatment is as follow :

quenching + tempering + 860 °C Oil quenching + 390°C Tempering .

At last ,the tolerance of tooling we can control is +/-0.02mm

Range:

we can manufacture Acute tooling, Goose neck punch ,Single V die ,2 V die ,Multi V die block, die holder and upper adaptor for punch.
Popular size for the tooling is:26*97*835mm ,26*150*835mm, 60*60*835mm, 56*120*835mm

The longest bottom die we can make is up to 10 meters ( size:220*220*10,000mm)

Case:

Year 2014, we manufactured one upper tooling (size : 25*165*6100mm ) and bottom tooling(120*120*6100mm) to one of famous machinery dealer in Australia .

Adjustable Die Block opening 100-200 MM 8000mm for Accurlpress Australia
